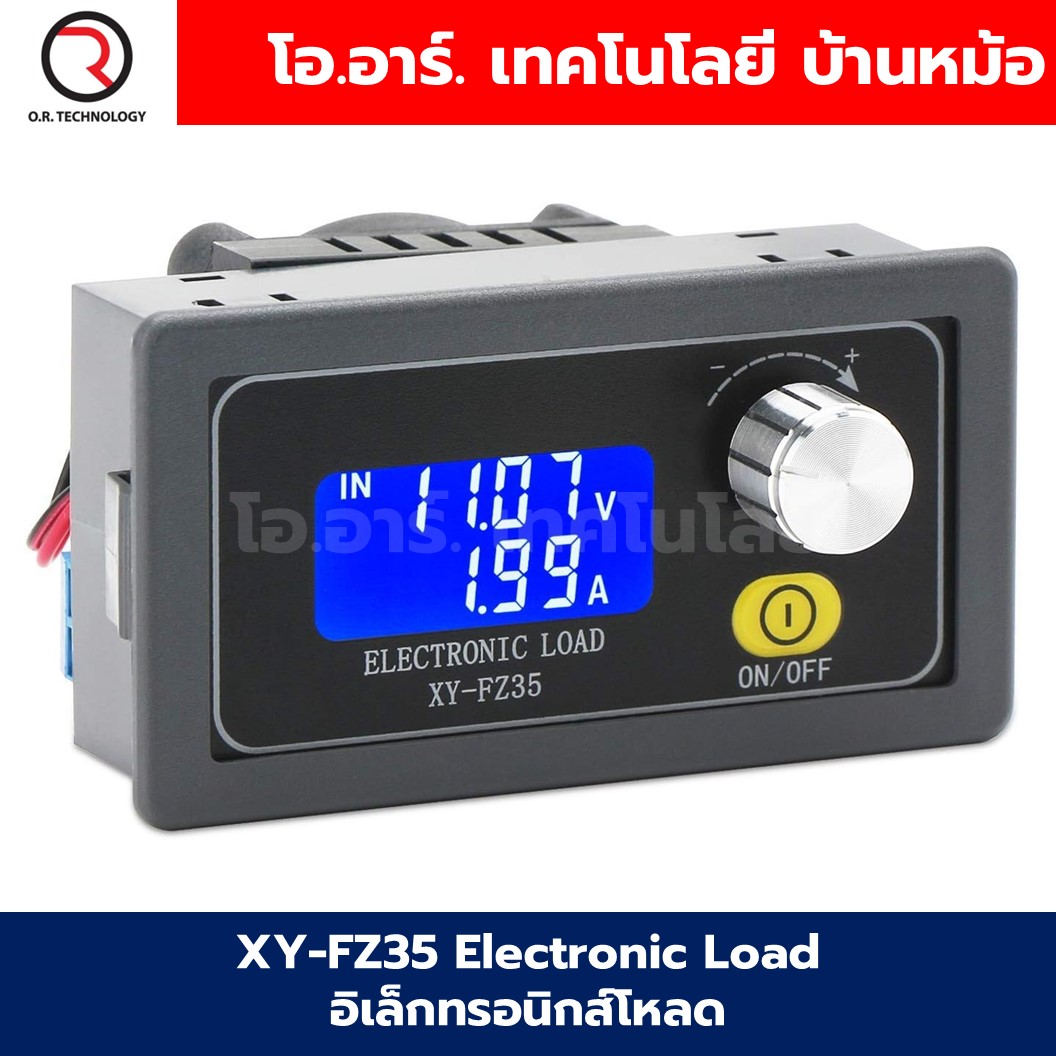

XY-FZ35 Electronic Load อิเล็กทรอนิกส์โหลด Tester

XY-FZ35 Electronic Load อิเล็กทรอนิกส์โหลด Tester
1.Description: The industrial-grade long-life electronic load tester adopts long-life ball fan whichhas fast rotating speed and strong wind.It supports continuous discharging for non-stop work and suitable for long-period discharge or the factory do aging test for products.It is suitable for testing the charger's output current capability, charger batchaging test, measuring battery load capacity, etc.

2.Features: 1>.With outer casing 2>.LCD high definition display 3>.Support UART 4>.High precision 0.01A 5>.Support over-voltage protection 6>.Support over-current protection 7>.Support under-voltage protection 8>.Support over temperature protection 9>.Multiple parameters are displayed simultaneously 10>.Automatically count working hours

3.Parameters: 1>.Product name: FZ35 5A 35W Electronic Load Tester 2>.Model: FZ35 3>.Work voltage:DC 5.0V-30V 4>.Rated load voltage:DC 1.5V-25V 5>.Rated load current:5A 6>.Power:35W 7>.Current accuracy:1% 8>.Voltage accuracy:0.5% 9>.Over voltage protection:Default 25.2V(Adjustable) 10>.Over current protection:Default 5.10A(Adjustable) 11>.Over power protection:Default 35.5W(Adjustable) 12>.Under voltage protection:Default 1.5V(Adjustable) 13>.Over temperature protection:About 80℃(Unadjustable) 14>.Fan speed:8000RPM+/-10% 15>.Work Temperature:-40℃~85℃ 16>.Work Humidity:0%~95%RH 17>.Size:79*43*56mm

4.Function: 1>.Display current A,voltage V,power W,capacity Ah and Discharge time 2>.Perfect protection mechanism 3>.Automatically count discharge capacity and discharge time 4>.Supports setting maximum discharge capacity (OAH) and maximumdischargetime (OHP).(Achieve unattended for power aging test) 5>.Intelligent temperature control fan.The fan automatically starts when the power is greater than 10W or the temperature is greater than 40℃6>.Rotary coded potentiometer for precise current adjustment to 0.01A 7>.The current can be locked to prevent misoperation 8>.Data group function:user can choose whether to accumulate the capacity value and running time of the previous phase 9>.Support UART data communication

5.Protection mechanism: 1>.FZ35 supports reverse protection for input terminal. 2>.FZ35 supports reverse protection for output terminal. 3>.OVP over voltage protection.The default protection value is 25.2V.But user canmodify the values as required.Screen will display OVP and flashing after start over voltage protection. 4>.OCP over current protection.The default protection value is 5.10A.But user canmodify the values as required.Screen will display OCP and flashing after start over current protection. 5>.OPP over power protection.The default protection value is 35.5W.But user canmodify the values as required.Screen will display OPP and flashing after start over power protection. 6>.OTP over temperature protection.The default protection value is 80℃.It cannot be modified!Screen will display OTP and flashing after start over temperature protection. 7>.LVP under voltage protection.The default protection value is 1.5V.But user canmodify the values as required.Screen will display LVP and flashing after start under voltage protection.In the battery discharge test, setting the appropriate LVP caneffectively prevent the battery from being over-discharged, so as not to damage thebattery.

6.Initialization state: Automatically display the last parameter value.

7.Discharge capacity and discharge time statistics: 1>.Discharge capacity statistics:FZ35 start to statistics when load current is not zero.After the next load current is zero, it is considered that a discharge process is completed and the statistics are over. 2>.Discharge time statistics:FZ35 start to statistics when load current is not zero.After the next load current is zero, it is considered that a discharge process is completed and the statistics are over.

8.Set OAH and OHP: 1>.Set maximum capacity OAH:FZ35 automatically stops working and flashes "OAH" on screen when the load discharge capacity is higher than the set maximumcapacity after enable OAH function.The capacity statistics are automatically clearedafter the OAH alarm is released. 2>.Set maximum discharge time OHP:FZ35 automatically stops working andflashes "OHP" on screen when the load discharge time is more than the set maximumdischarge time after enable OHP function.The discharge time statistics are clearedautomatically after the OHP alarm is released. 3>.The OAH and OHP can be perfectly implemented unattended for power agingtest.4>.FZ35 will record discharge capacity and discharge time even if OAHand OHPare not enable.But FZ35 stops working after reaching the set value if OAH and OHPareenable.The running time of the FZ35 is the countdown mode when enable OHP.
