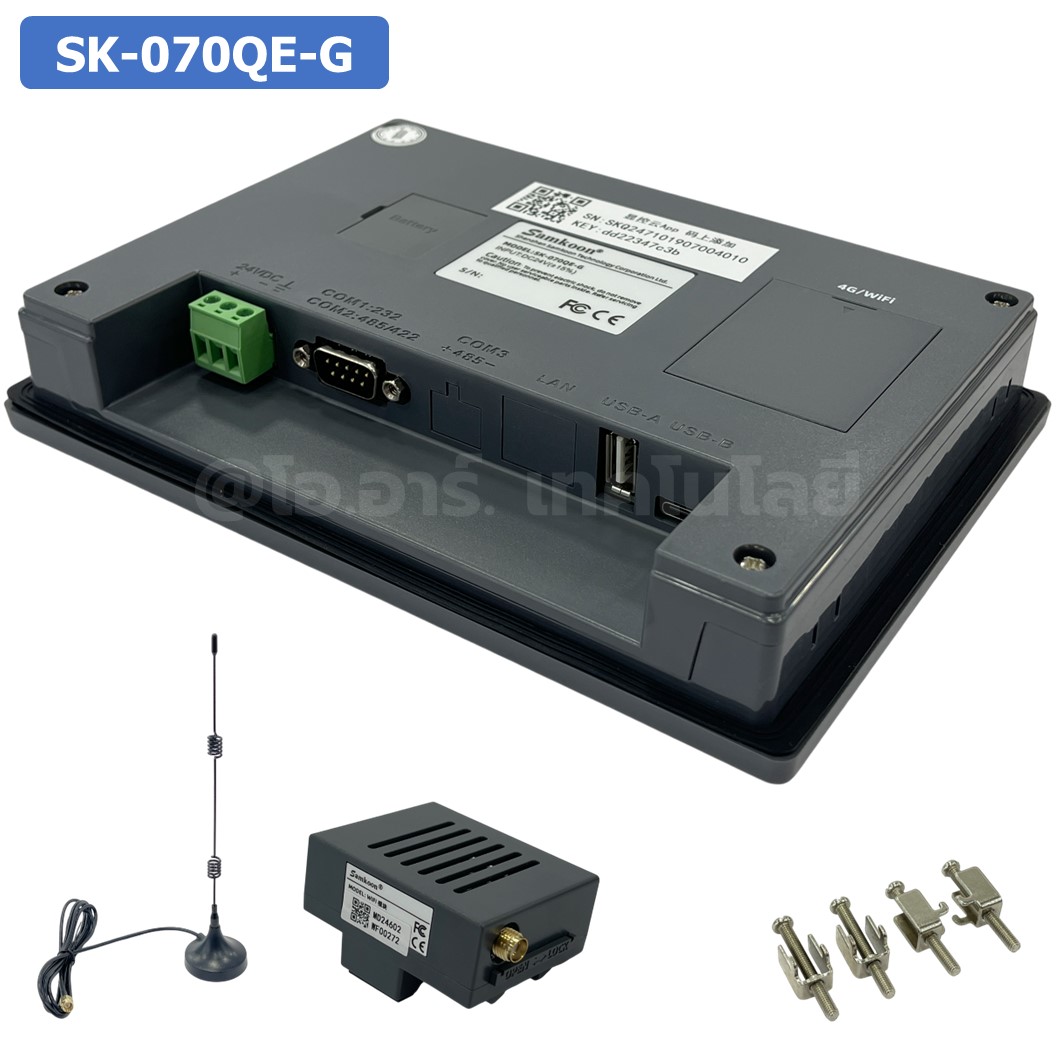

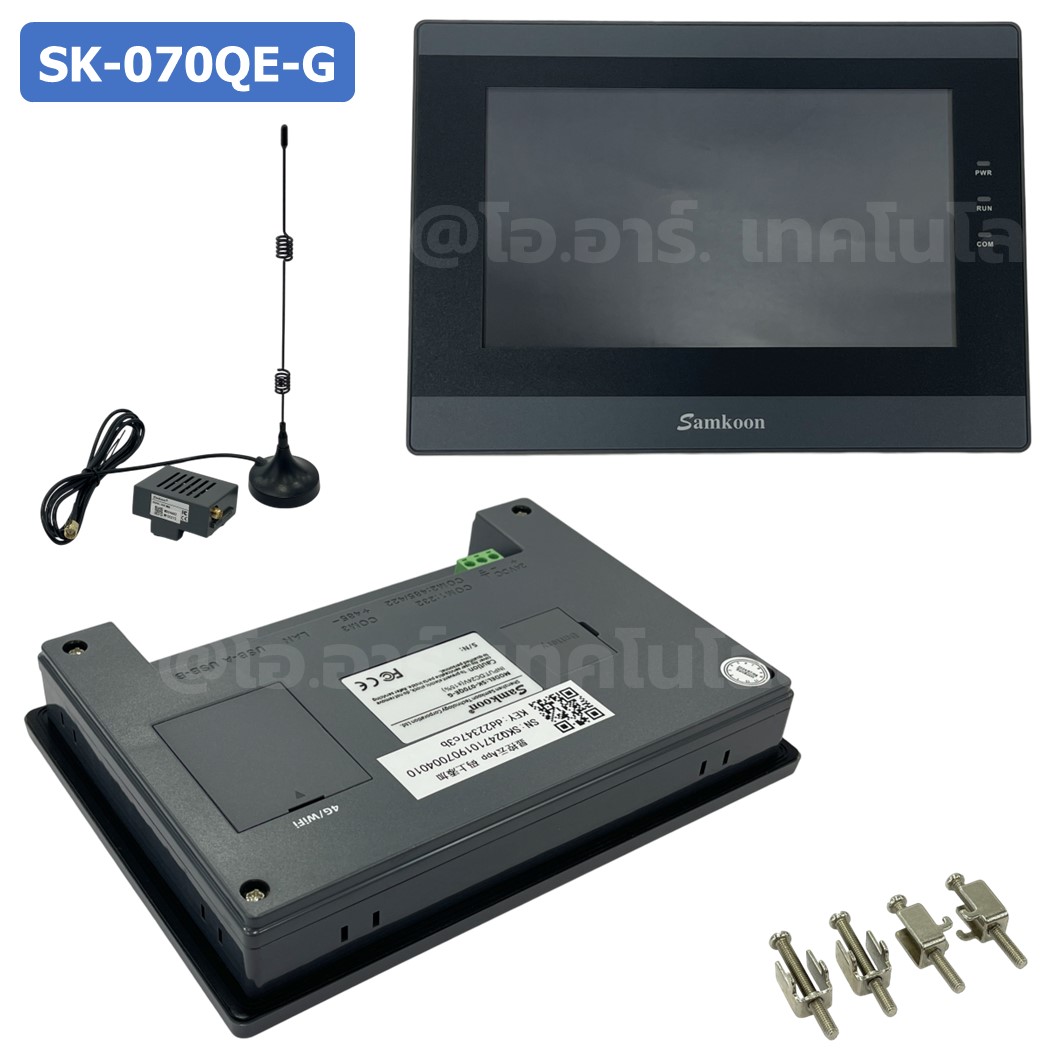

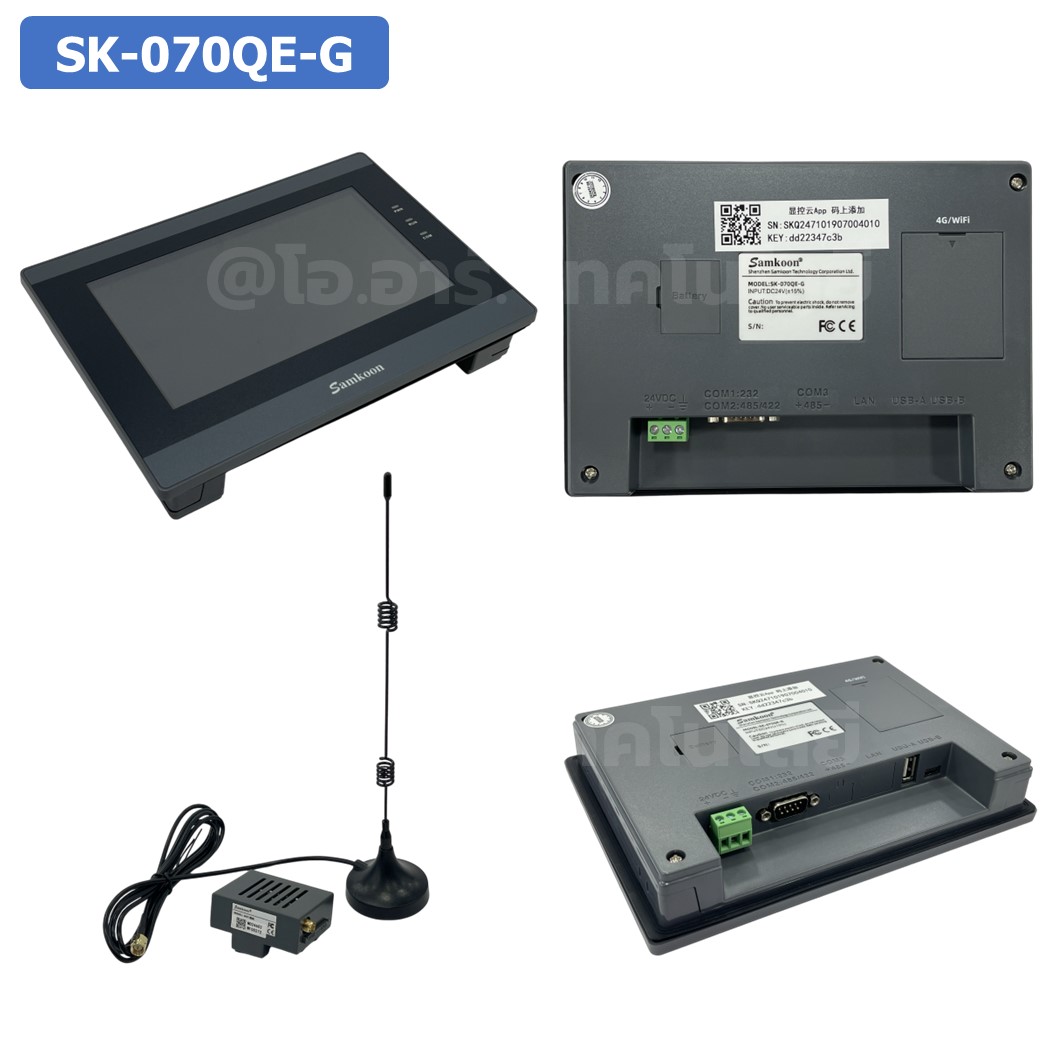

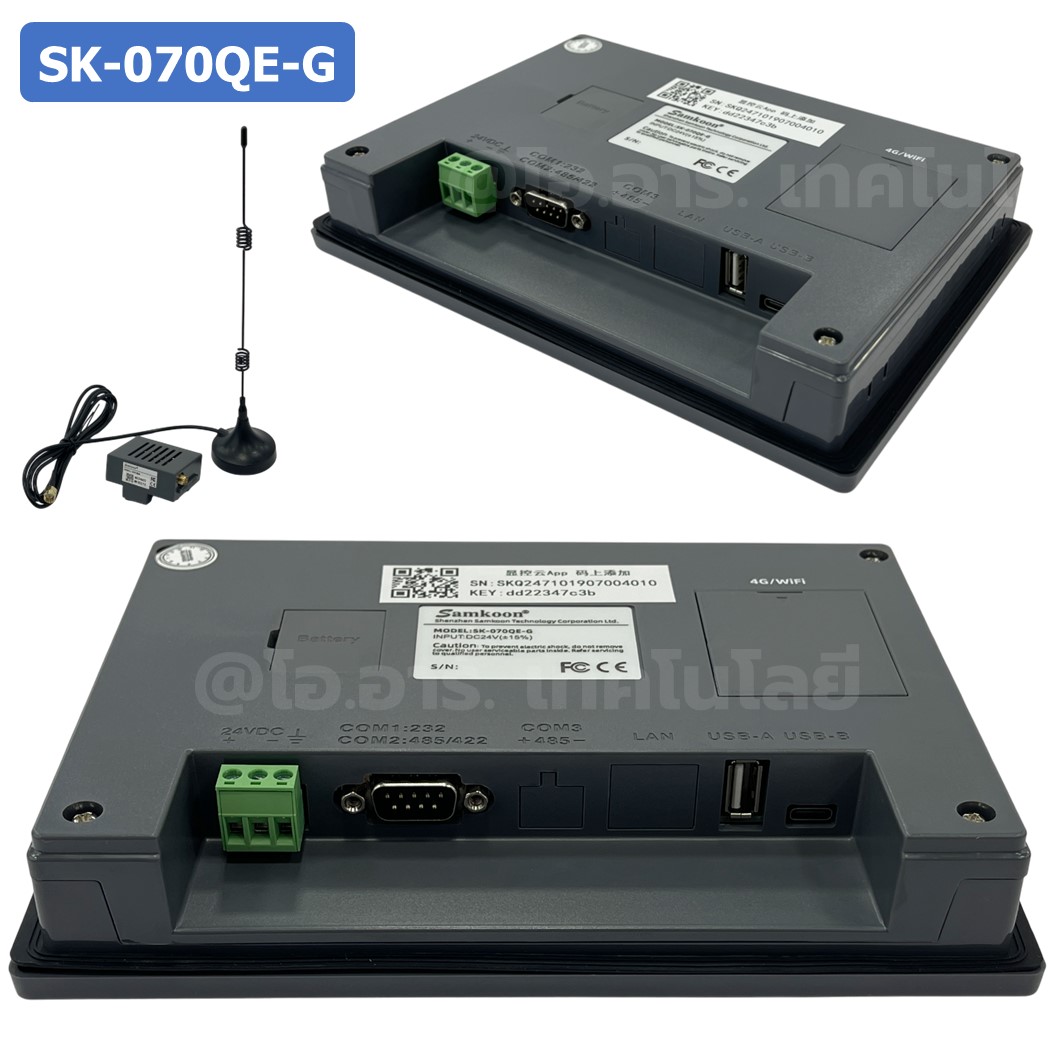

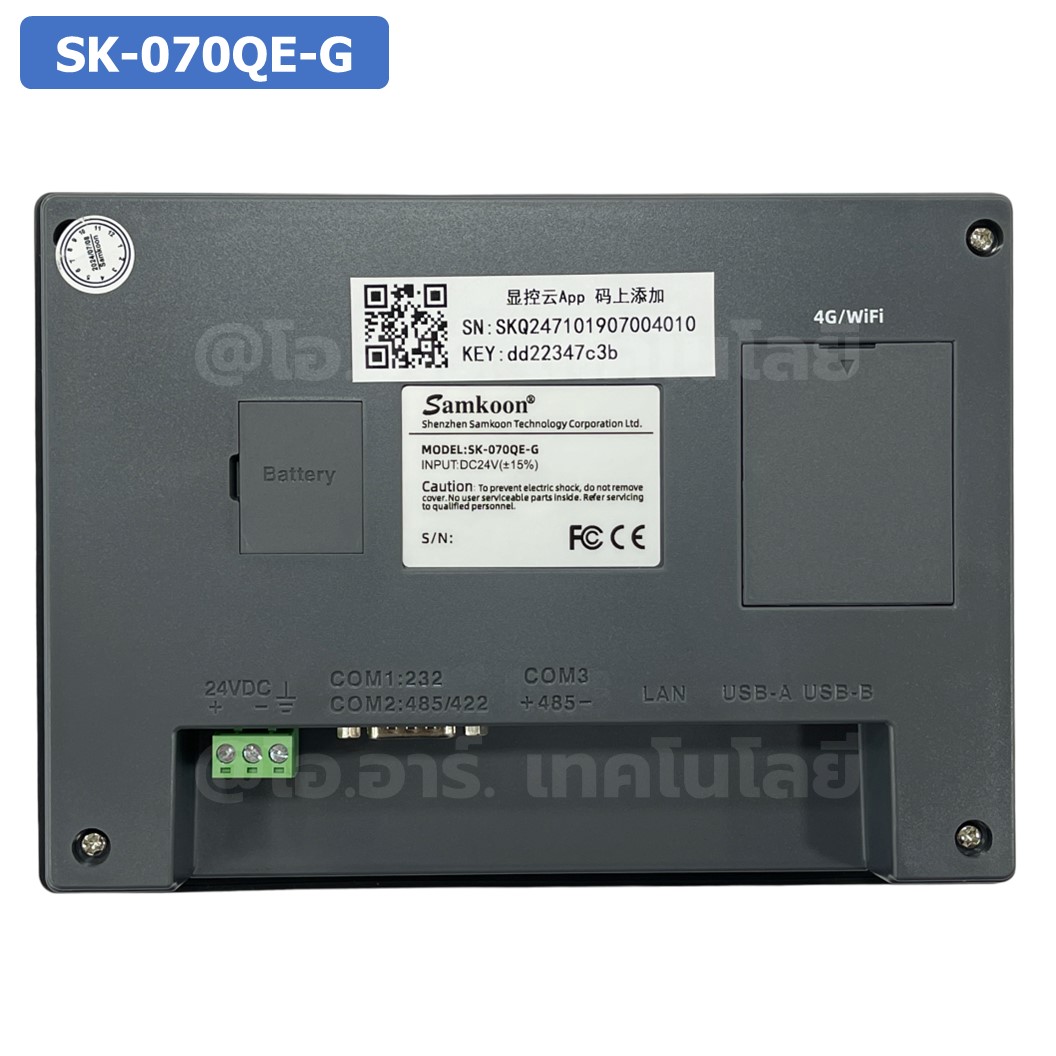

SAMKOON HMI SK-070QE-G + WiFi module IoT จอทัชสกรีน 7.0" HMI Touch Screen 7.0" รองรับ WiFi module IOT (Human Machine Interface)
|
| ข้อมูล |
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
|
| รายละเอียดสินค้า |
SAMKOON HMI SK-070QE-G + WiFi module IoT จอทัชสกรีน 7.0" HMI Touch Screen 7.0" รองรับ WiFi module IOT (Human Machine Interface)
High-Performance Configuration
- Built on the Linux operating system, offering stability, efficiency, and reliability.
- Equipped with an industrial-grade Cortex A7 processor, with a maximum clock speed of 1GHz.
- Provides ample storage with 128MB FLASH and 128MB DDR3, and supports external USB storage.
- Optional WiFi/4G IoT expansion modules for connectivity flexibility, supporting the Xiankong IoT platform.
Diverse Function Modules
- Supports multiple sets of recipes and multi-window functionality.
- Features data collection and data alert capabilities.
- Supports the development of macro commands in C language.
- Allows for Chinese language input.
- Compatible with over 300 PLC communication protocols.
- Available in over 50 languages with a rich variety of control elements.
Comprehensive Embedded Interfaces
- Supports multiple communication methods, including RS232/422/485 and 4G/WiFi.
- Enables USB downloads and configuration updates via a USB drive.
Advanced Security Mechanisms
- Provides configuration file encryption.
- Supports installment payments and HMI protection.
- Incorporates multiple security mechanisms for enhanced data protection.
Rich Color Selection
- The display offers an impressive 16.7 million true colors, ensuring vivid and detailed visuals.
Stringent Quality Control
- Complies with FCC, Class A, and CE certifications, ensuring adherence to rigorous quality standards.

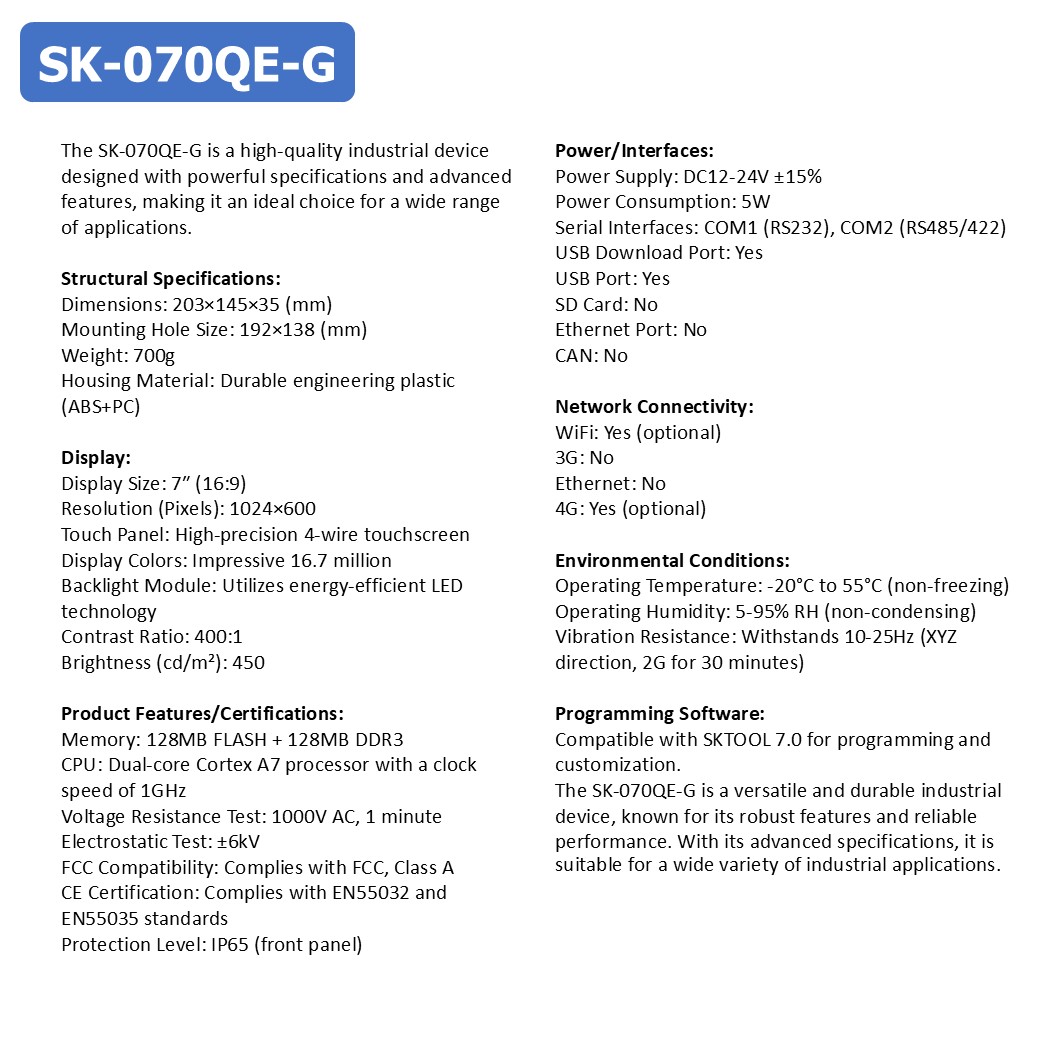

The SK-070QE-G is a high-quality industrial device designed with powerful specifications and advanced features, making it an ideal choice for a wide range of applications.
Structural Specifications:
Dimensions: 203×145×35 (mm)
Mounting Hole Size: 192×138 (mm)
Weight: 700g
Housing Material: Durable engineering plastic (ABS+PC)
Display:
Display Size: 7″ (16:9)
Resolution (Pixels): 1024×600
Touch Panel: High-precision 4-wire touchscreen
Display Colors: Impressive 16.7 million
Backlight Module: Utilizes energy-efficient LED technology
Contrast Ratio: 400:1
Brightness (cd/m²): 450
Product Features/Certifications:
Memory: 128MB FLASH + 128MB DDR3
CPU: Dual-core Cortex A7 processor with a clock speed of 1GHz
Voltage Resistance Test: 1000V AC, 1 minute
Electrostatic Test: ±6kV
FCC Compatibility: Complies with FCC, Class A
CE Certification: Complies with EN55032 and EN55035 standards
Protection Level: IP65 (front panel)
Power/Interfaces:
Power Supply: DC12-24V ±15%
Power Consumption: 5W
Serial Interfaces: COM1 (RS232), COM2 (RS485/422)
USB Download Port: Yes
USB Port: Yes
SD Card: No
Ethernet Port: No
CAN: No
Network Connectivity:
WiFi: Yes (optional)
3G: No
Ethernet: No
4G: Yes (optional)
Environmental Conditions:
Operating Temperature: -20°C to 55°C (non-freezing)
Operating Humidity: 5-95% RH (non-condensing)
Vibration Resistance: Withstands 10-25Hz (XYZ direction, 2G for 30 minutes)
Programming Software:
Compatible with SKTOOL 7.0 for programming and customization.
The SK-070QE-G is a versatile and durable industrial device, known for its robust features and reliable performance. With its advanced specifications, it is suitable for a wide variety of industrial applications.
         |
