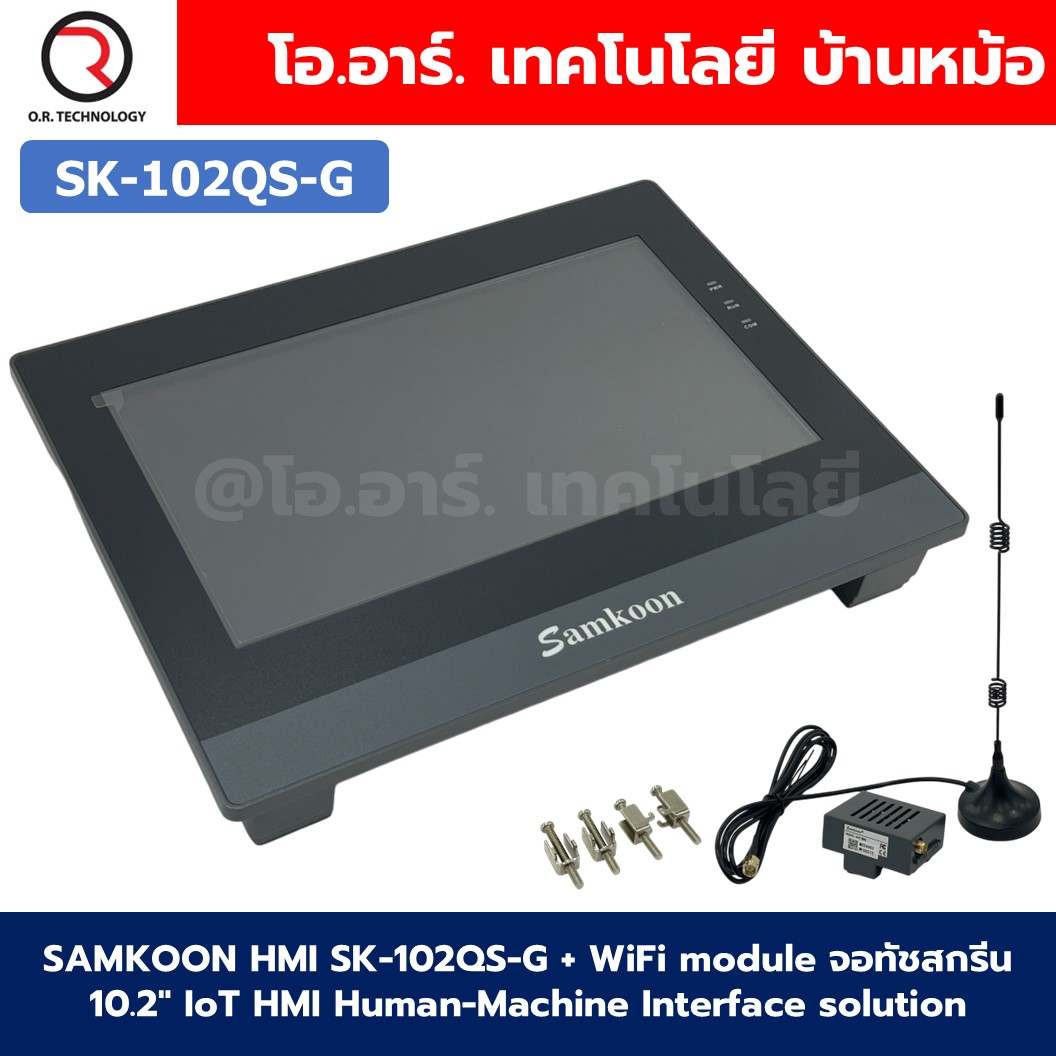

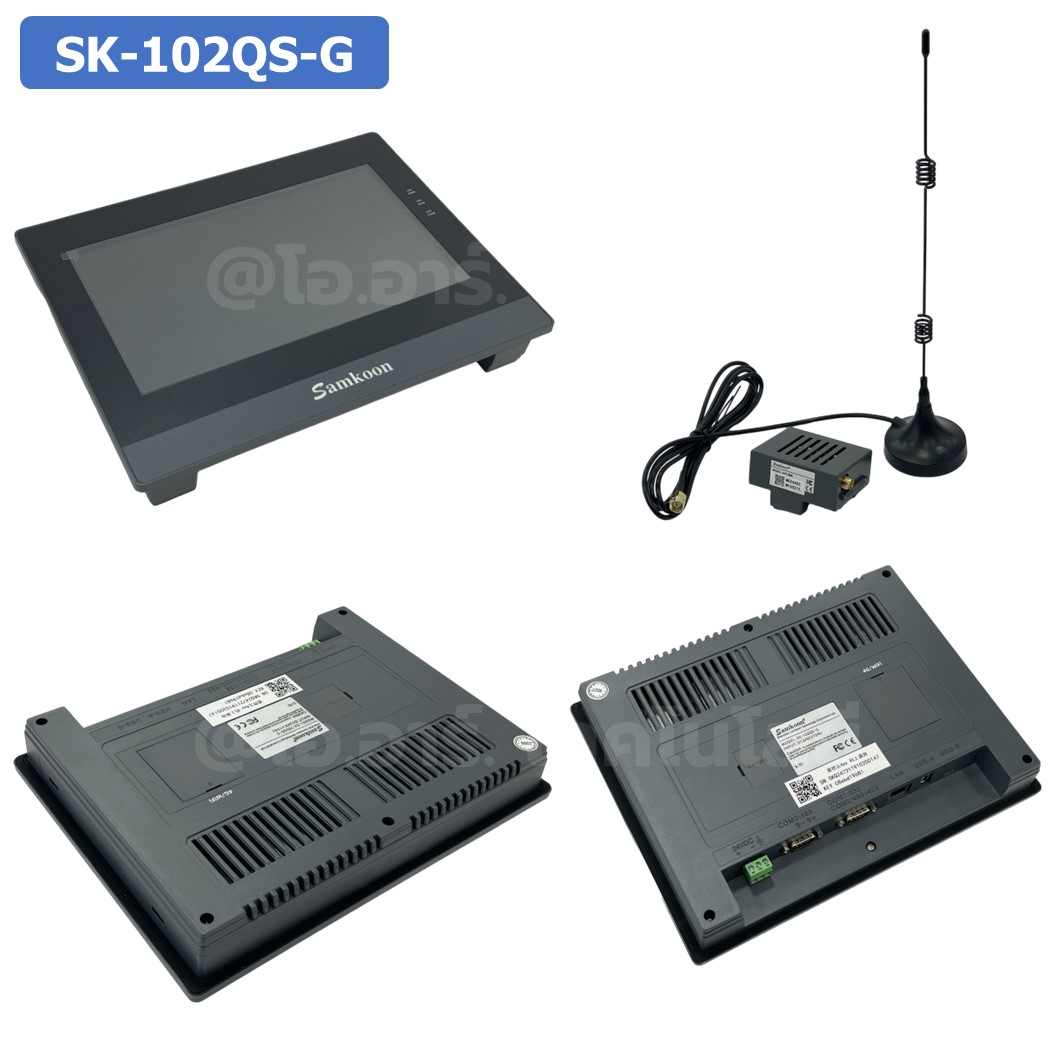

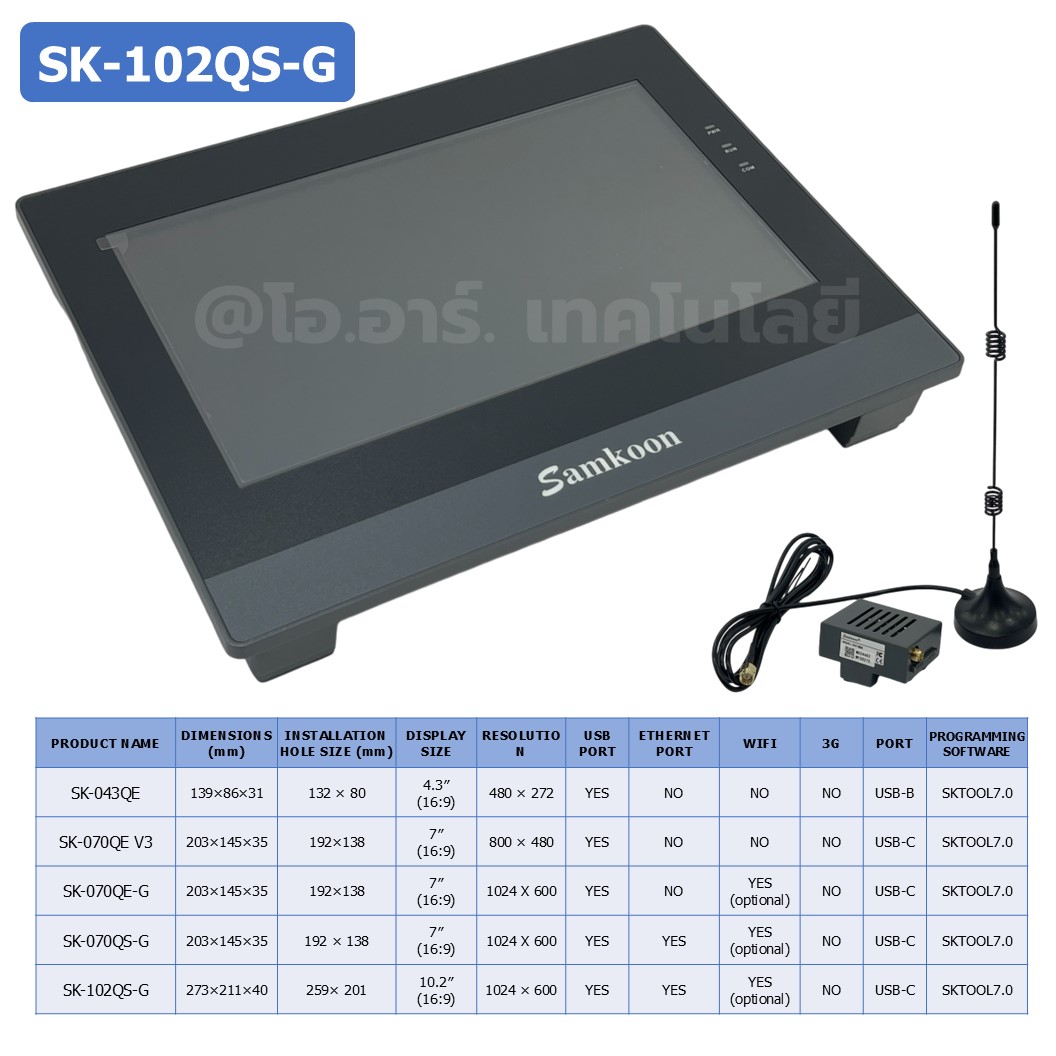

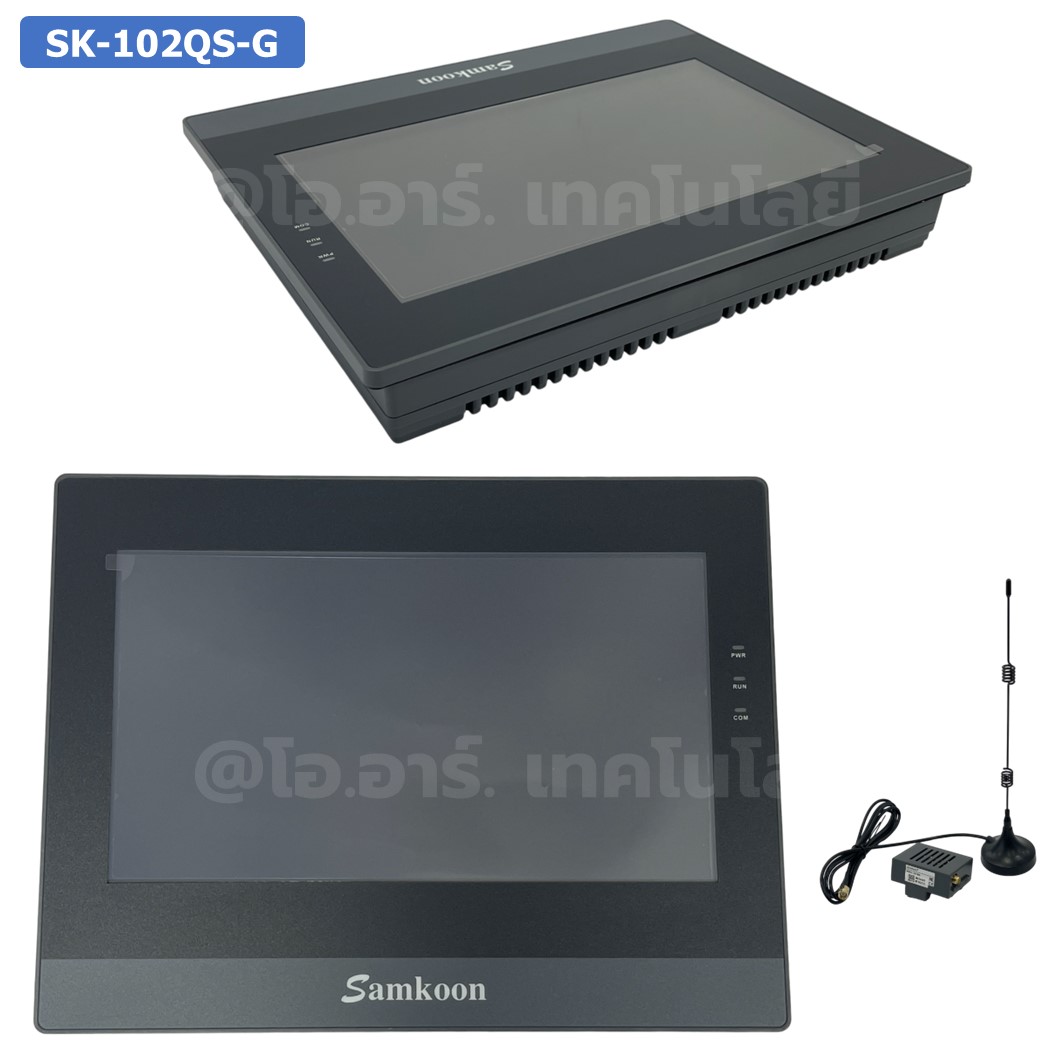

SAMKOON HMI SK-102QS-G + WiFi module IoT จอทัชสกรีน 10.2" HMI Touch Screen 10.2" รองรับ Ethernet, WiFi module IOT (Human Machine Interface)

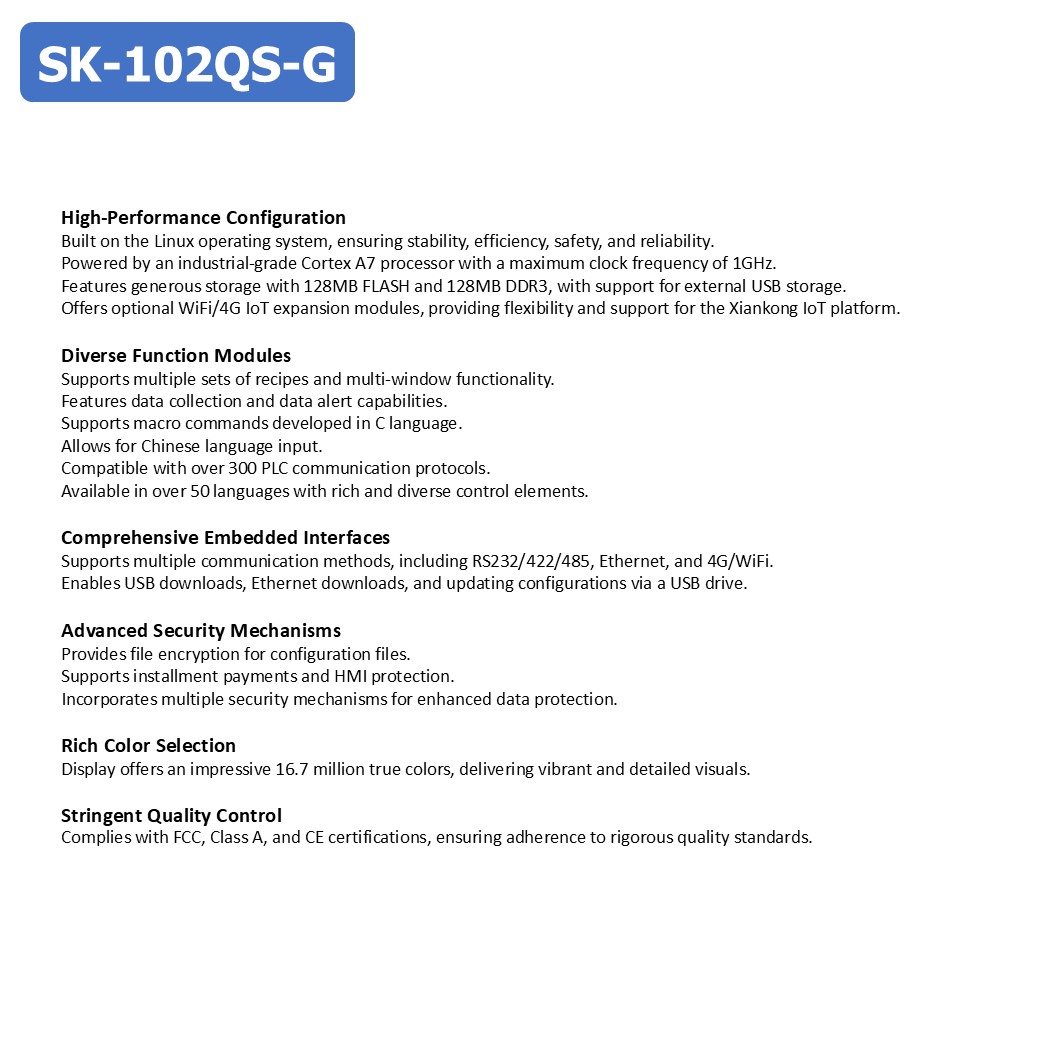

High-Performance Configuration
Built on the Linux operating system, ensuring stability, efficiency, safety, and reliability.
Powered by an industrial-grade Cortex A7 processor with a maximum clock frequency of 1GHz.
Features generous storage with 128MB FLASH and 128MB DDR3, with support for external USB storage.
Offers optional WiFi/4G IoT expansion modules, providing flexibility and support for the Xiankong IoT platform.

Diverse Function Modules
Supports multiple sets of recipes and multi-window functionality.
Features data collection and data alert capabilities.
Supports macro commands developed in C language.
Allows for Chinese language input.
Compatible with over 300 PLC communication protocols.
Available in over 50 languages with rich and diverse control elements.

Comprehensive Embedded Interfaces
Supports multiple communication methods, including RS232/422/485, Ethernet, and 4G/WiFi.
Enables USB downloads, Ethernet downloads, and updating configurations via a USB drive.

Advanced Security Mechanisms
Provides file encryption for configuration files.
Supports installment payments and HMI protection.
Incorporates multiple security mechanisms for enhanced data protection.

Rich Color Selection
Display offers an impressive 16.7 million true colors, delivering vibrant and detailed visuals.

Stringent Quality Control
Complies with FCC, Class A, and CE certifications, ensuring adherence to rigorous quality standards.

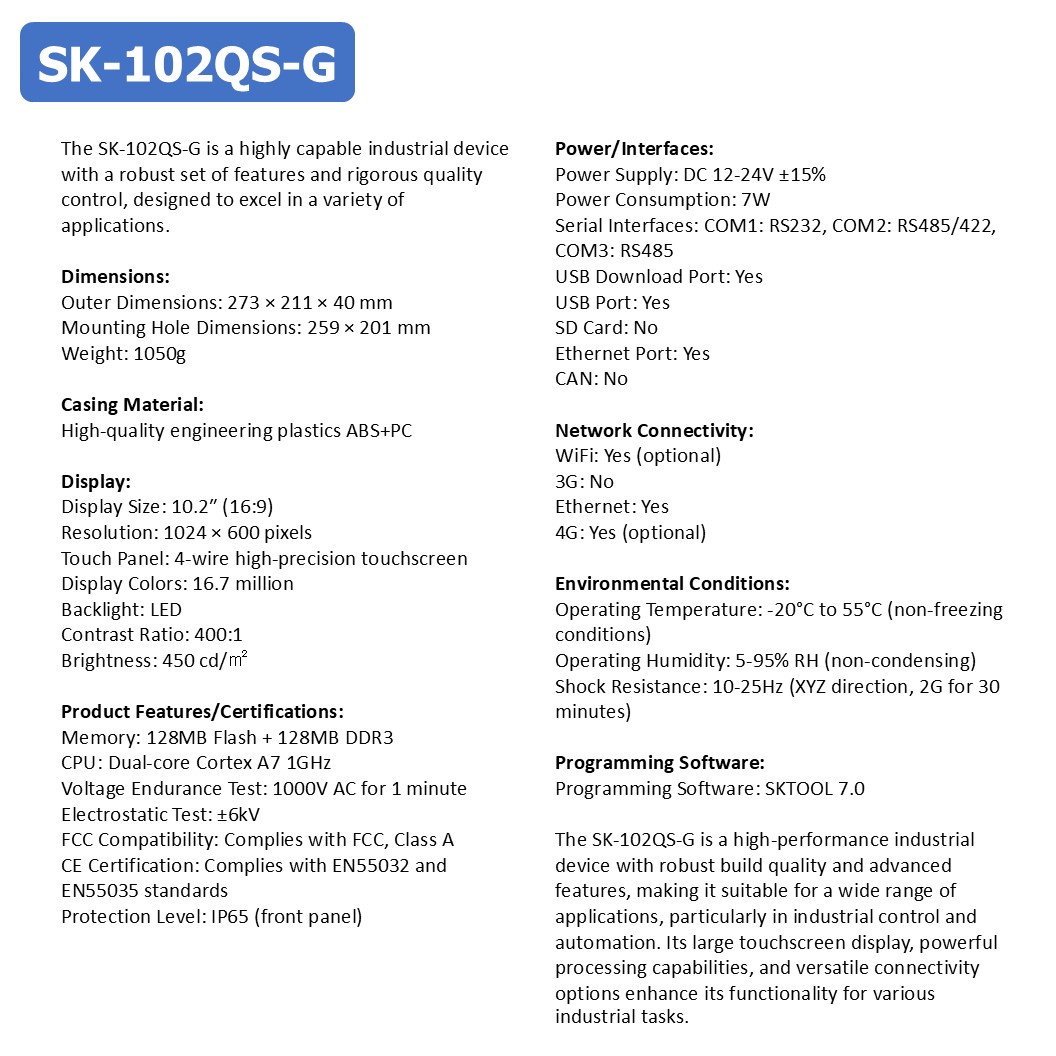

The SK-102QS-G is a highly capable industrial device with a robust set of features and rigorous quality control, designed to excel in a variety of applications.

Dimensions:
Outer Dimensions: 273 × 211 × 40 mm
Mounting Hole Dimensions: 259 × 201 mm
Weight: 1050g

Casing Material:
High-quality engineering plastics ABS+PC

Display:
Display Size: 10.2″ (16:9)
Resolution: 1024 × 600 pixels
Touch Panel: 4-wire high-precision touchscreen
Display Colors: 16.7 million
Backlight: LED
Contrast Ratio: 400:1
Brightness: 450 cd/㎡

Product Features/Certifications:
Memory: 128MB Flash + 128MB DDR3
CPU: Dual-core Cortex A7 1GHz
Voltage Endurance Test: 1000V AC for 1 minute
Electrostatic Test: ±6kV
FCC Compatibility: Complies with FCC, Class A
CE Certification: Complies with EN55032 and EN55035 standards
Protection Level: IP65 (front panel)

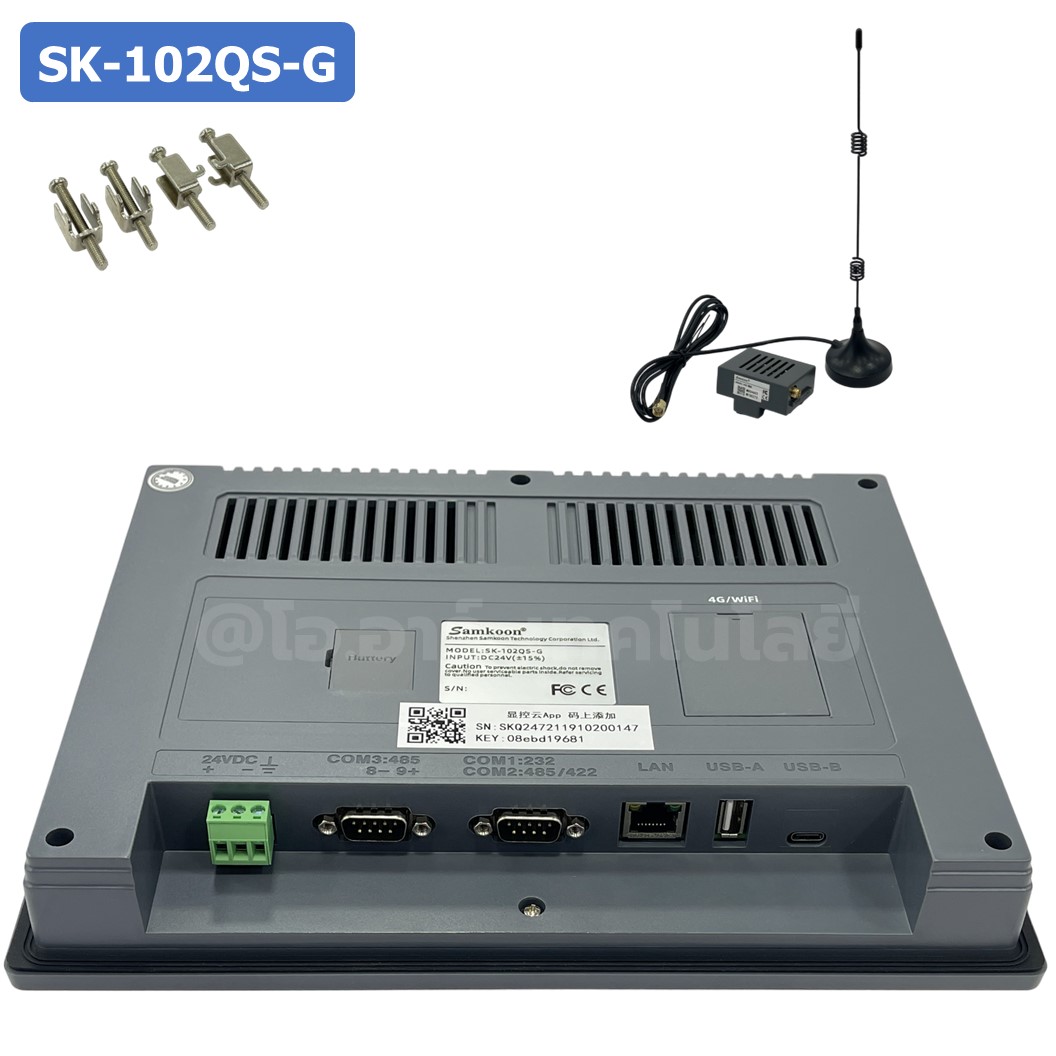

Power/Interfaces:
Power Supply: DC 12-24V ±15%
Power Consumption: 7W
Serial Interfaces: COM1: RS232, COM2: RS485/422, COM3: RS485
USB Download Port: Yes
USB Port: Yes
SD Card: No
Ethernet Port: Yes
CAN: No

Network Connectivity:
WiFi: Yes (optional)
3G: No
Ethernet: Yes
4G: Yes (optional)

Environmental Conditions:
Operating Temperature: -20°C to 55°C (non-freezing conditions)
Operating Humidity: 5-95% RH (non-condensing)
Shock Resistance: 10-25Hz (XYZ direction, 2G for 30 minutes)

Programming Software:
Programming Software: SKTOOL 7.0

The SK-102QS-G is a high-performance industrial device with robust build quality and advanced features, making it suitable for a wide range of applications, particularly in industrial control and automation. Its large touchscreen display, powerful processing capabilities, and versatile connectivity options enhance its functionality for various industrial tasks.
